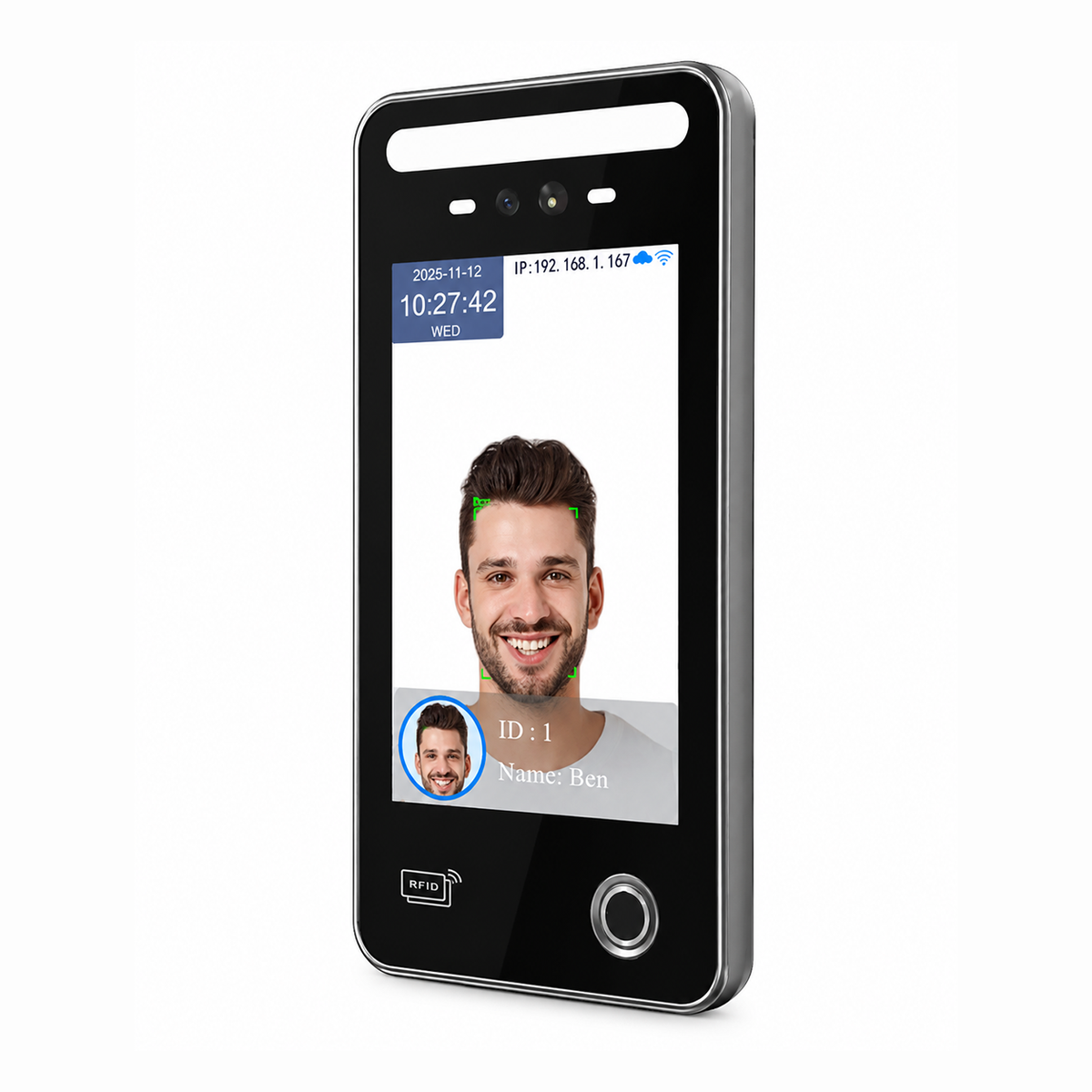

IP65 Face Recognition Palm Vein Fingerprint Access Control Time Attendance Terminal DF08F

Overview

DF08F is an IP65-rated aluminum alloy biometric access control and time attendance terminal featuring dynamic face recognition, palm vein recognition, fingerprint, RFID card and password authentication. Equipped with an 8-inch IPS touchscreen, AI-powered recognition, infrared liveness detection, Wi-Fi and TCP/IP connectivity, it is designed for professional access control and workforce attendance applications.

Product Description

DF08F Biometric Access Control & Time Attendance Terminal

The DF08F is a professional multi-biometric access control and time attendance terminal designed for offices, factories, commercial buildings, schools and other workforce management applications.

Built with a durable aluminum alloy housing and IP65 protection, the terminal combines dynamic face recognition, palm vein recognition, fingerprint verification, RFID card and password authentication in one integrated device.

Powered by a 1.2 GHz dual-core ARM Cortex-A7 processor and 0.8 TOPS NPU, the terminal provides fast biometric identification while supporting large user databases and up to 500,000 attendance and access records.

Multiple Biometric Authentication Methods

DF08F supports five major verification methods:

• Dynamic Face Recognition
• Palm Vein Recognition
• Fingerprint Recognition
• RFID Card
• Password

For applications requiring higher security, the terminal also supports multi-factor authentication, including combinations such as Face + Fingerprint + Card.

Dynamic Face Recognition & Liveness Detection

Dynamic face recognition allows users to verify their identity naturally without having to stand extremely close to the terminal.

Face recognition distance: 0.5–2.5 m
Infrared liveness detection distance: 0.5–1.5 m

Infrared liveness detection provides an additional layer of security for face authentication.

Palm Vein Recognition

Palm vein authentication uses biometric vein patterns for contactless identity verification, providing an additional authentication option for environments requiring secure and convenient access.

The standard configuration supports 20,000 palm vein templates, with an optional capacity of up to 160,000.

Large 8-Inch IPS Touchscreen

The large 8-inch IPS touchscreen provides a clear and intuitive interface for user verification, device configuration and daily operation.

Its large display makes the terminal particularly suitable for entrances, reception areas, factories and other high-traffic locations.

IP65 Aluminum Alloy Housing

Unlike conventional plastic attendance terminals, the DF08F features a durable aluminum alloy housing with an IP65 protection rating, helping protect the device against dust and water ingress.

Flexible Network Management

The terminal supports:

TCP/IP · Wi-Fi · USB Type-A

It can operate independently in offline mode or connect to management systems through the network.

Both C/S LAN management and B/S WAN cloud communication are supported, providing flexible deployment options for different projects.

Professional Access Control Functions

DF08F integrates attendance management with professional door access control interfaces, including:

• Relay Output
• Exit Button Input
• Door Sensor Input
• Wiegand Input / Output
• Touch Doorbell
• Alarm Output
• Anti-passback

This allows the terminal to function as both an employee attendance device and a complete biometric door access control terminal.

Key Features

5-in-1 Authentication
Face + Palm Vein + Fingerprint + RFID Card + Password

8" IPS Touchscreen
Large touchscreen for clear display and easy operation

IP65 Protection
Durable aluminum alloy housing for professional installations

AI Face Recognition
0.8 TOPS NPU with dynamic face recognition

Infrared Liveness Detection
Recognition distance up to 1.5 meters with IR liveness enabled

Large User Capacity
Up to 80,000 faces and 160,000 palm vein/fingerprint templates with optional capacity expansion

500,000 Records
Large transaction storage for attendance and access records

Wi-Fi + TCP/IP
Flexible wired and wireless network communication

LAN & Cloud Management
Supports C/S local network management and B/S WAN cloud communication

Professional Access Control
Relay, exit button, door sensor, Wiegand, alarm and anti-passback support
