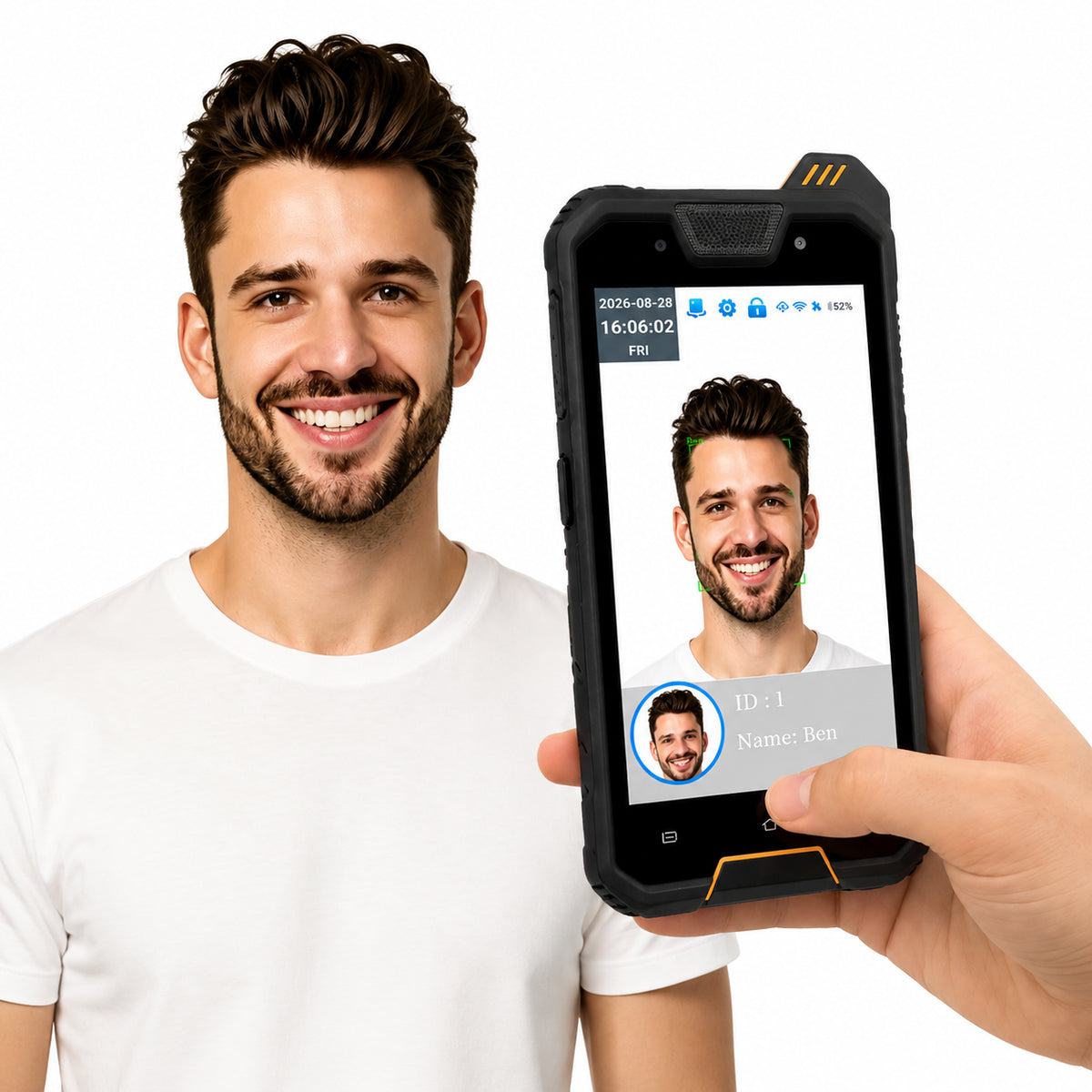

Handheld Portable Face Recognition Attendance Terminal AF06
Product Overview
Handheld Portable Face Recognition Attendance Terminal
The AF06 is a rugged handheld face recognition attendance terminal designed for mobile workforce management and employee attendance in locations where traditional fixed attendance machines are not practical.
Powered by Android 11, the AF06 combines fast face recognition with 4G LTE, dual-band WiFi, GPS positioning and cloud-based attendance management. Its portable design and built-in 6000mAh rechargeable battery allow attendance verification to be performed across construction sites, factories, warehouses, field operations and other mobile working environments.

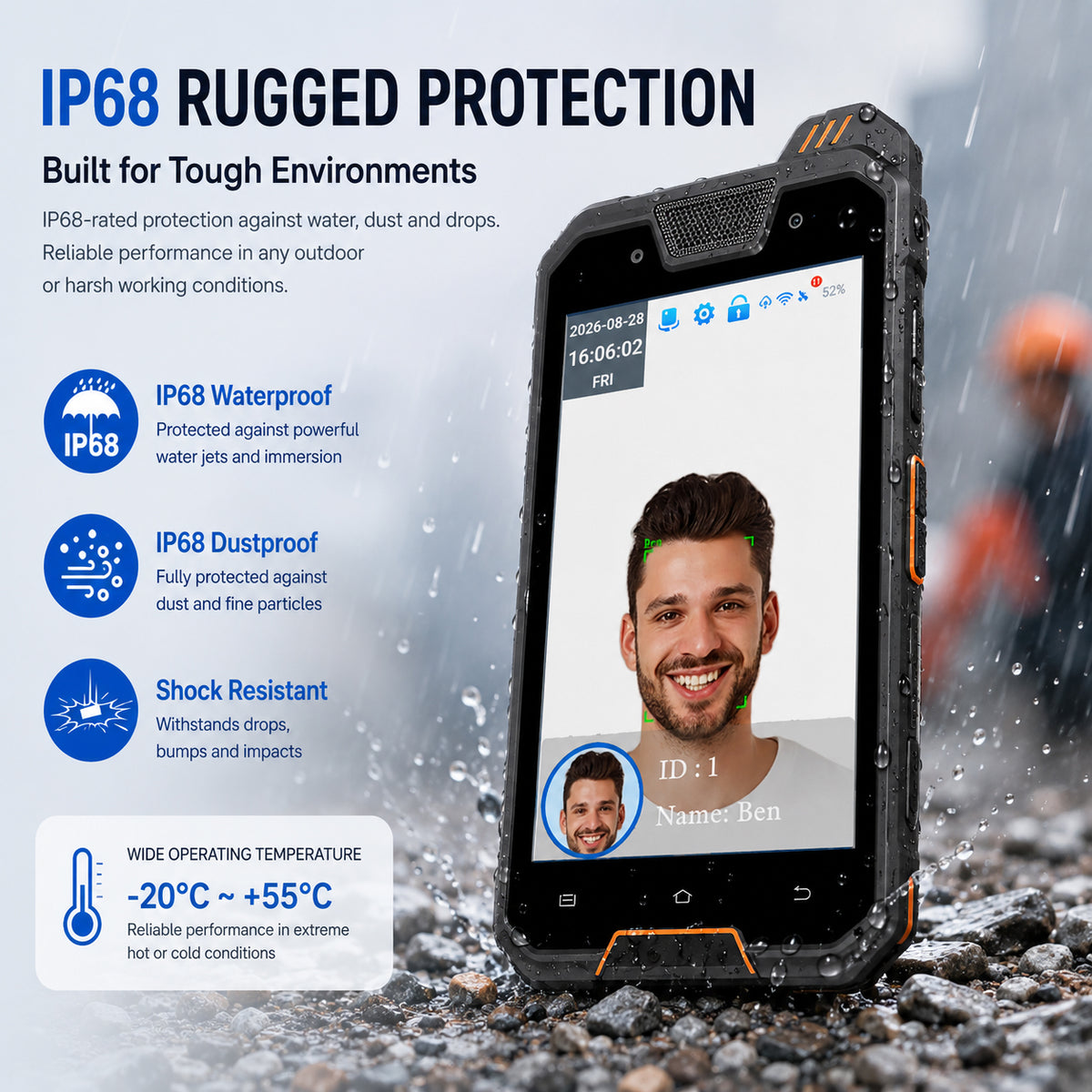

With IP68-rated water and dust protection and a shock-resistant industrial design, the AF06 is built for demanding indoor and outdoor applications. Attendance records can be synchronized with the cloud platform in real time, allowing administrators to centrally manage employees and attendance data across multiple locations.

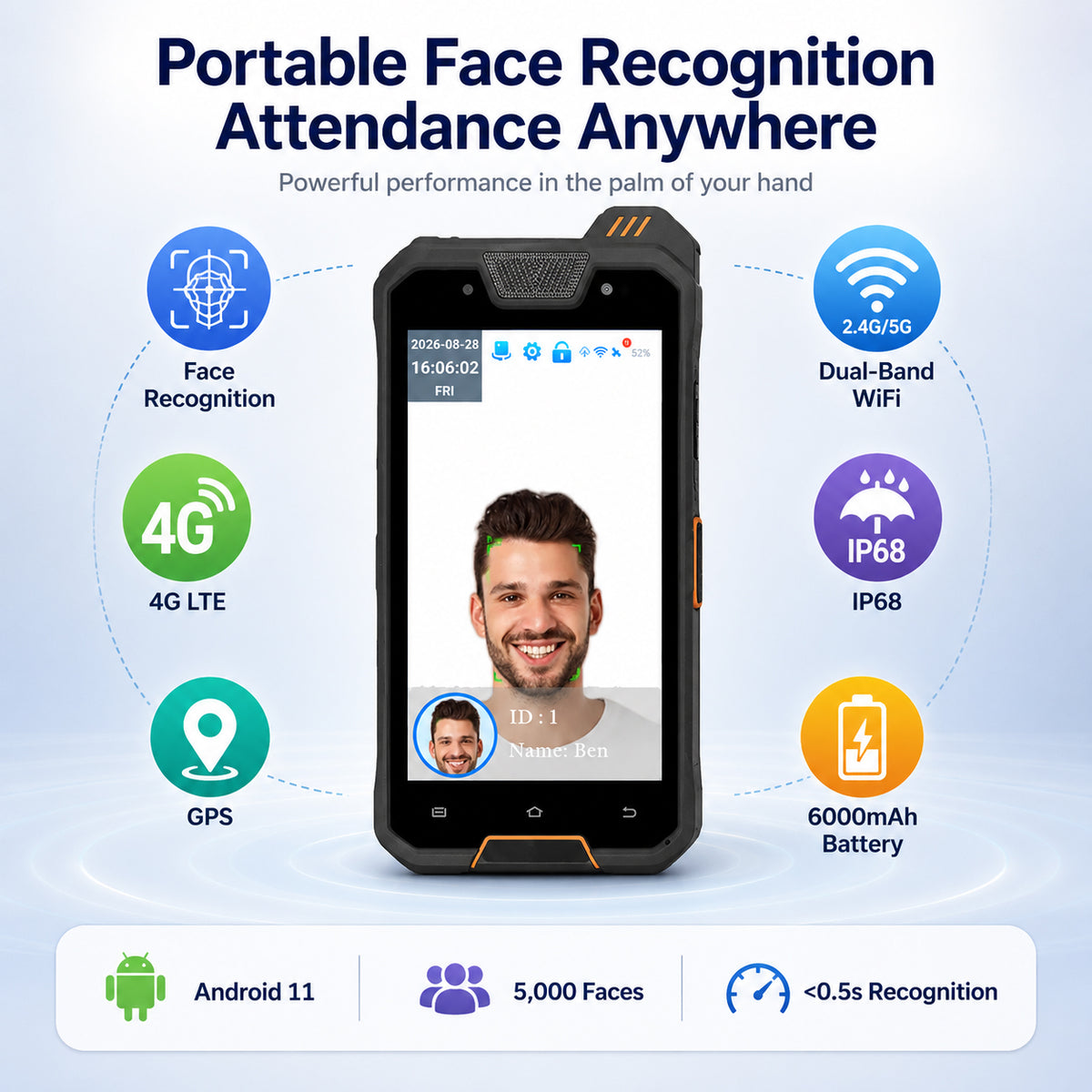

Key Features
- Handheld portable face recognition attendance
- Fast face recognition in less than 0.5 seconds
- Up to 5,000 users and 5,000 faces
- 500,000 attendance record capacity
- Android 11 operating system
- 4GB RAM + 64GB ROM
- Optional 6GB RAM + 128GB ROM
- 4G LTE mobile network connectivity
- 2.4GHz / 5GHz dual-band WiFi
- GPS positioning
- 6000mAh rechargeable battery
- IP68 water and dust protection
- Professional shock-resistant design
- 5-inch HD touchscreen
- Cloud-based attendance management
- Multi-device and multi-location centralized management
Technical Specifications
| Specification | Details |
|---|---|
| CPU | MT6765 (G36), Octa-Core, up to 2.2GHz |
| RAM & Storage | 4GB RAM + 64GB ROM |
| Optional Memory | 6GB RAM + 128GB ROM |
| Operating System | Android 11 |
| Display | 5.0-inch HD touchscreen |
| Resolution | 720 × 1280 |
| Touch Panel | Capacitive 5-point touchscreen, Corning Glass |
| Front Camera | 5MP |
| Rear Camera | 13MP Auto Focus |
| SIM | Dual Nano SIM |
| Mobile Network | 4G LTE / WCDMA / GSM and compatible networks |
| LTE | CAT4, up to 150Mbps download / 50Mbps upload |
| WiFi | 2.4GHz / 5GHz, IEEE 802.11 a/b/g/n/ac |
| Bluetooth | Bluetooth 5.0 |
| GPS | GPS / BeiDou / GNSS / AGPS |
| NFC | 13.56MHz |
| Barcode Scanner | 1D / 2D Barcode & QR Code |
| Fingerprint | Waterproof fingerprint recognition |
| Industrial Fingerprint | Optional rear industrial fingerprint module |

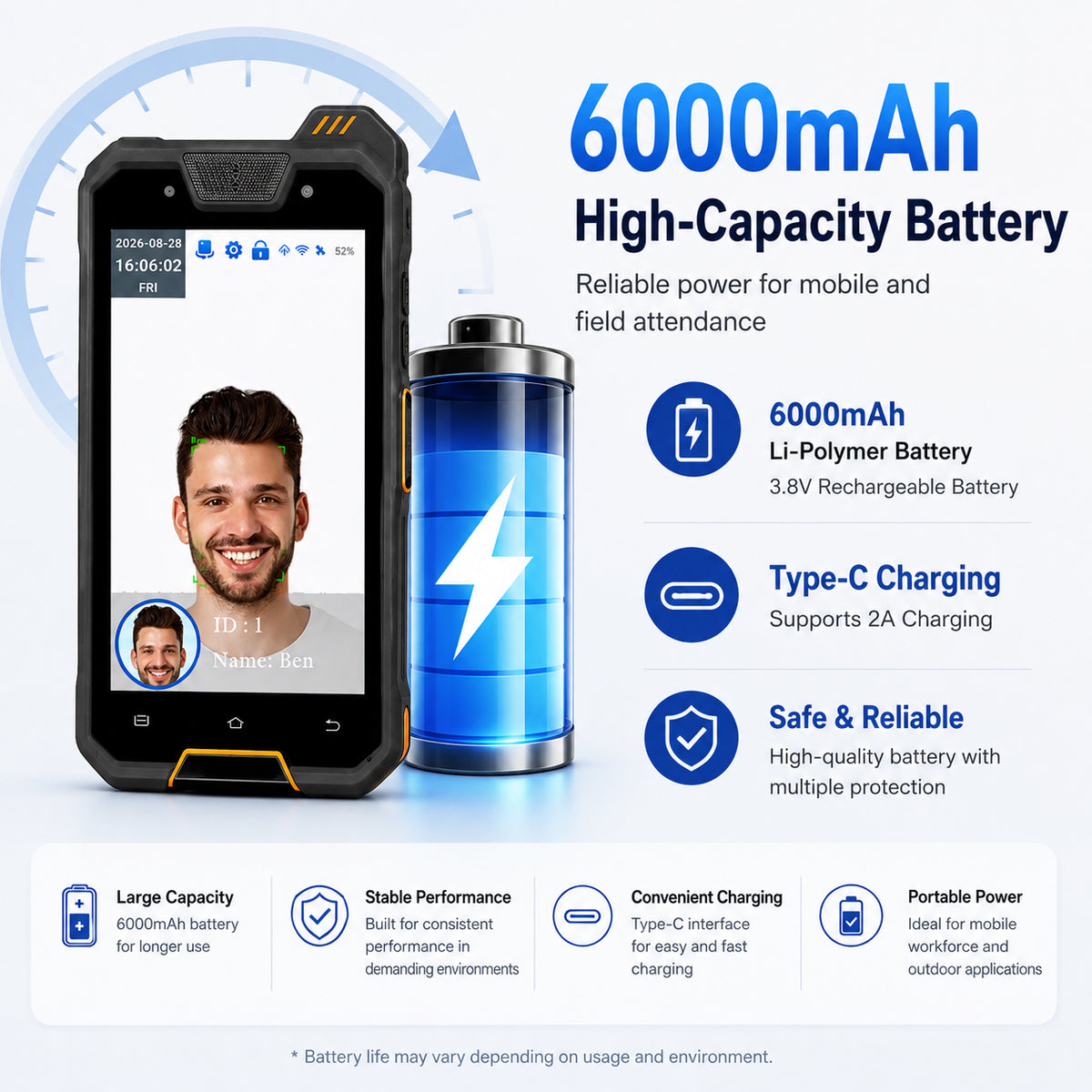

| Battery | 6000mAh, 3.8V lithium-polymer |
| USB | USB Type-C / USB 2.0 / OTG |
| Speaker | 2W high-power speaker |
| Headset | 3.5mm headset interface |
| Protection | IP68 waterproof & dustproof, shock-resistant |
| Sensors | Accelerometer, compass, proximity, light sensor, 3-axis gyroscope |

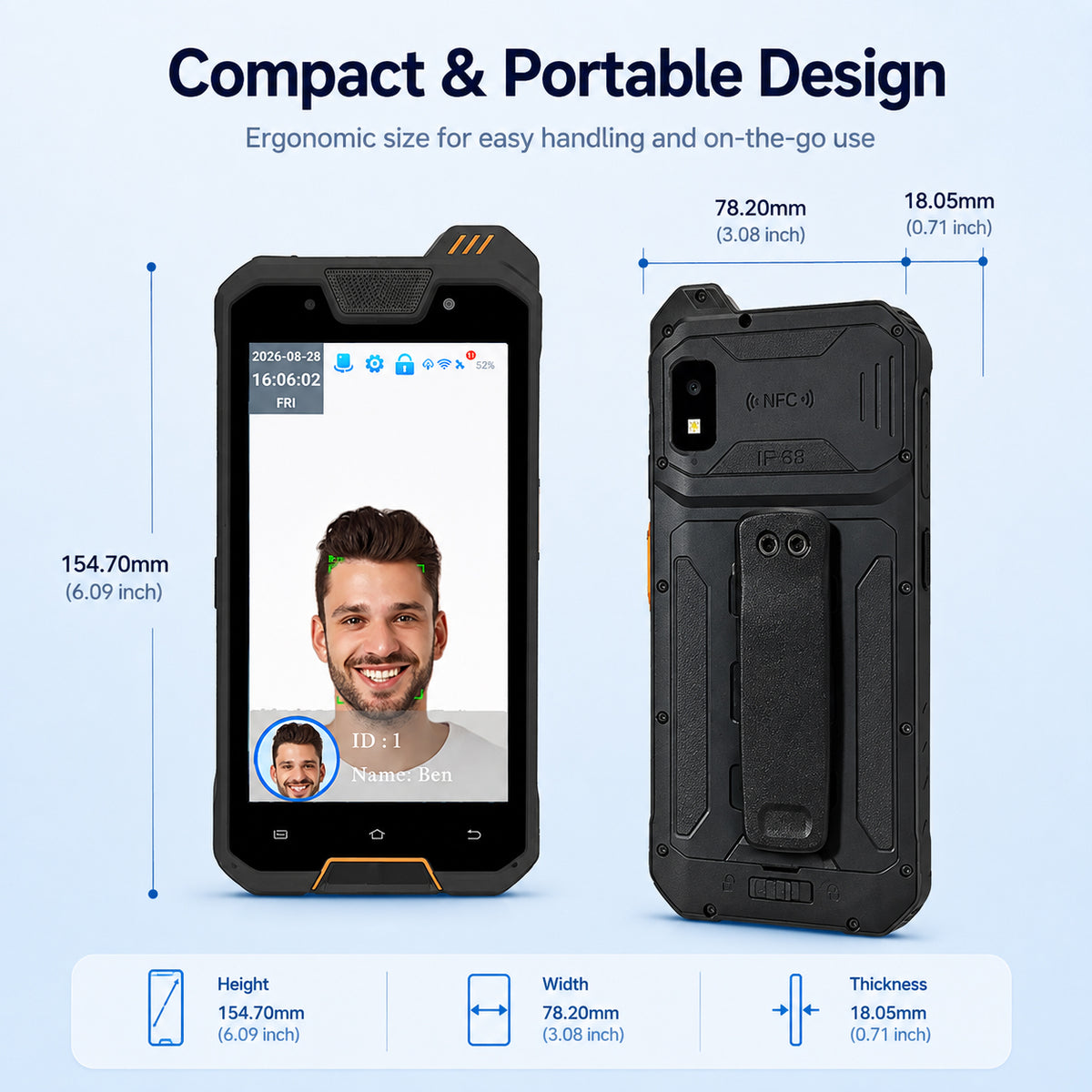

| Dimensions | 152 × 76 × 17mm |
| Color | Yellow + Black |
| Operating Temperature | -20°C to +55°C |
| Storage Temperature | -40°C to +70°C |
Face Recognition Specifications
| Face Recognition | Specification |
|---|---|
| Face Capacity | 5,000 |
| Recognition Mode | 1:N |
| Recognition Speed | <0.5 second |
| Recognition Distance | 0.3–1m |
| Recommended Recognition Angle | Approx. ±20° |
| Recognition Accuracy | ≥99.9% |
| False Recognition Rate | ≤0.01% |
| Display Information | Name and Employee ID |
Attendance Capacity
| Attendance Function | Capacity |
|---|---|
| User Capacity | 5,000 |
| Face Capacity | 5,000 |
| Card Capacity | 5,000 |
| Password Capacity | 5,000 |
| Attendance Records | 500,000 |
| Records with Photos | 20,000 |
| Verification Methods | Dynamic Face Recognition / Password |
| Recognition Mode | 1:N |
| Recognition Time | <0.5 second |
| Language | English; other languages customizable |

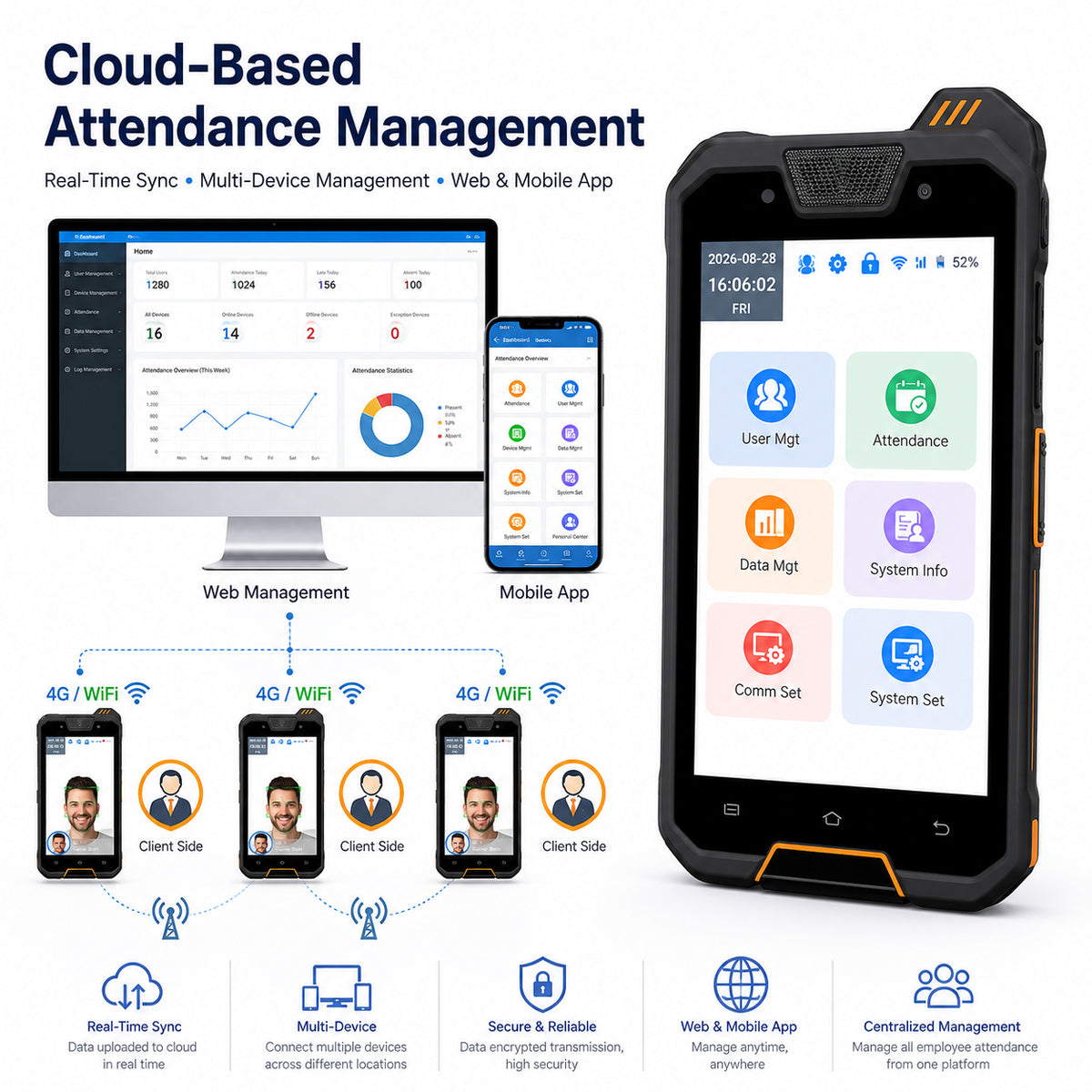

Cloud Attendance Software
Cloud-Based Attendance Management
The AF06 works with a professional cloud attendance management platform, allowing employee information and attendance records to be managed centrally across multiple devices and locations.
Real-Time Data Synchronization
Employee registration information and attendance records can be synchronized with the cloud server in real time, reducing the need for manual data collection.
Multi-Location Management
Multiple AF06 attendance terminals can be deployed at different job sites, branches or project locations and managed centrally from headquarters.
Employee Attendance App
Employees can check their attendance information through the mobile app, while administrators can view and manage employee attendance records from the management platform.
Centralized Workforce Management
The cloud platform provides an efficient solution for organizations managing mobile employees, construction workers, field teams and personnel across multiple locations.
Applications
Construction Sites
The portable design allows workers to complete face recognition attendance directly at construction sites without installing a fixed attendance terminal.
Field Service Teams
Ideal for employees and service teams working across different customer locations or outdoor environments.
Factories & Warehouses
Supervisors can use the handheld terminal for flexible attendance verification across production areas, warehouses and temporary workstations.
Remote Work Locations
4G LTE connectivity enables attendance data synchronization in locations where fixed Ethernet or WiFi networks may not be available.
Multi-Site Workforce Management
Organizations operating multiple branches, projects or job sites can synchronize attendance data to the cloud platform for centralized management.
FAQ
Can the AF06 work without WiFi?
→ Yes, 4G LTE mobile connectivity is supported.
Can the AF06 be used outdoors?
→ IP68 + -20°C ~ +55°C.
How many faces can the AF06 store?
→ 5,000.
Can multiple AF06 devices be managed together?
→ Yes, cloud centralized management.
Does the AF06 support GPS?
→ Yes.
