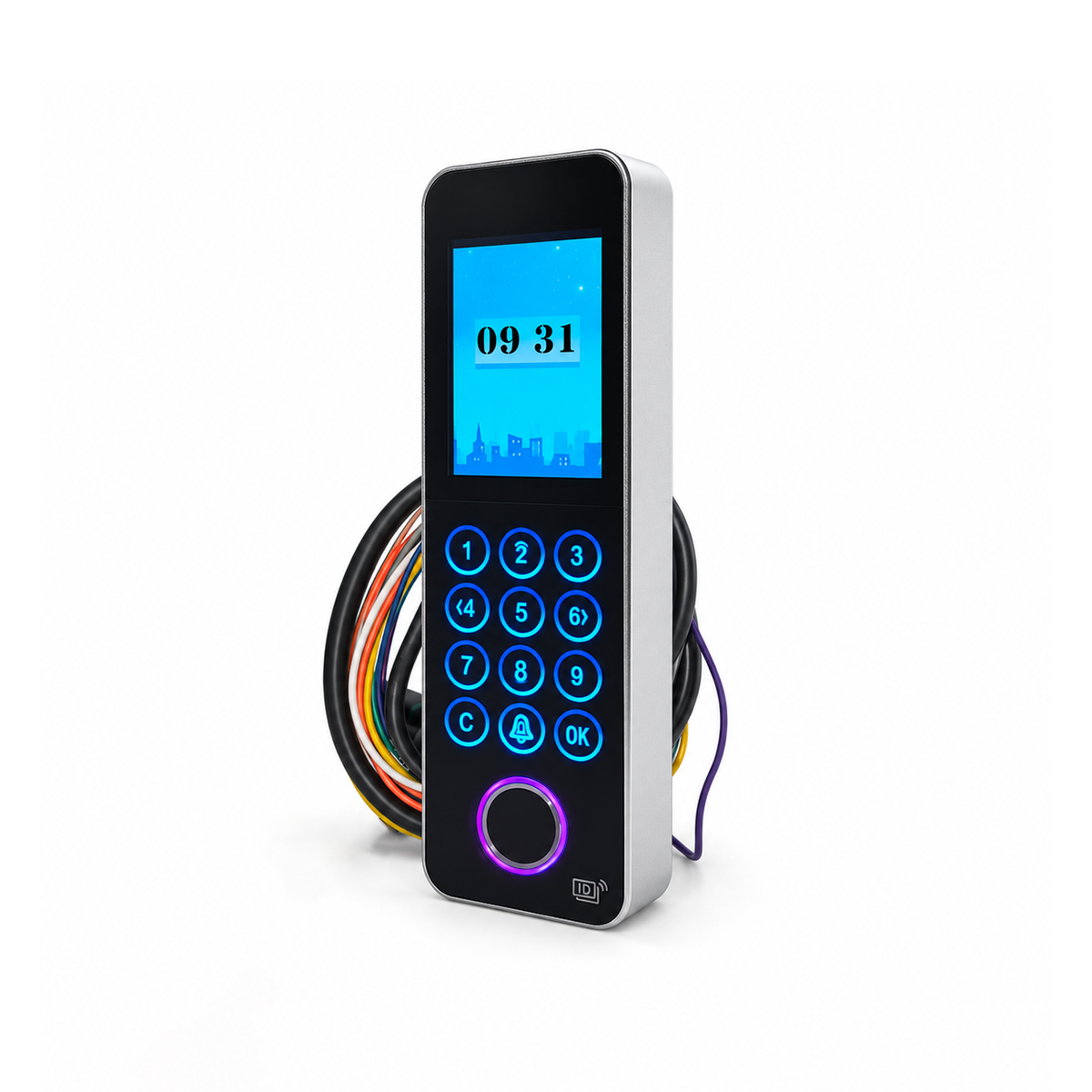

IP65 Fingerprint RFID & PIN Access Control Terminal Y305
The Y305 is a compact metal access control terminal with fingerprint, dual-frequency RFID card and PIN verification. Its slim 43 mm-wide housing fits narrow door frames, while IP65 protection and transparent rear potting help protect the electronics in outdoor installations.
Fingerprint, Dual-Frequency RFID & PIN Access
Choose fingerprint, card or PIN verification to suit your access requirements. Y305 supports both 125 kHz ID cards and 13.56 MHz IC cards, with storage for 3,000 fingerprints, 3,000 cards, 3,000 PINs and 100,000 records.

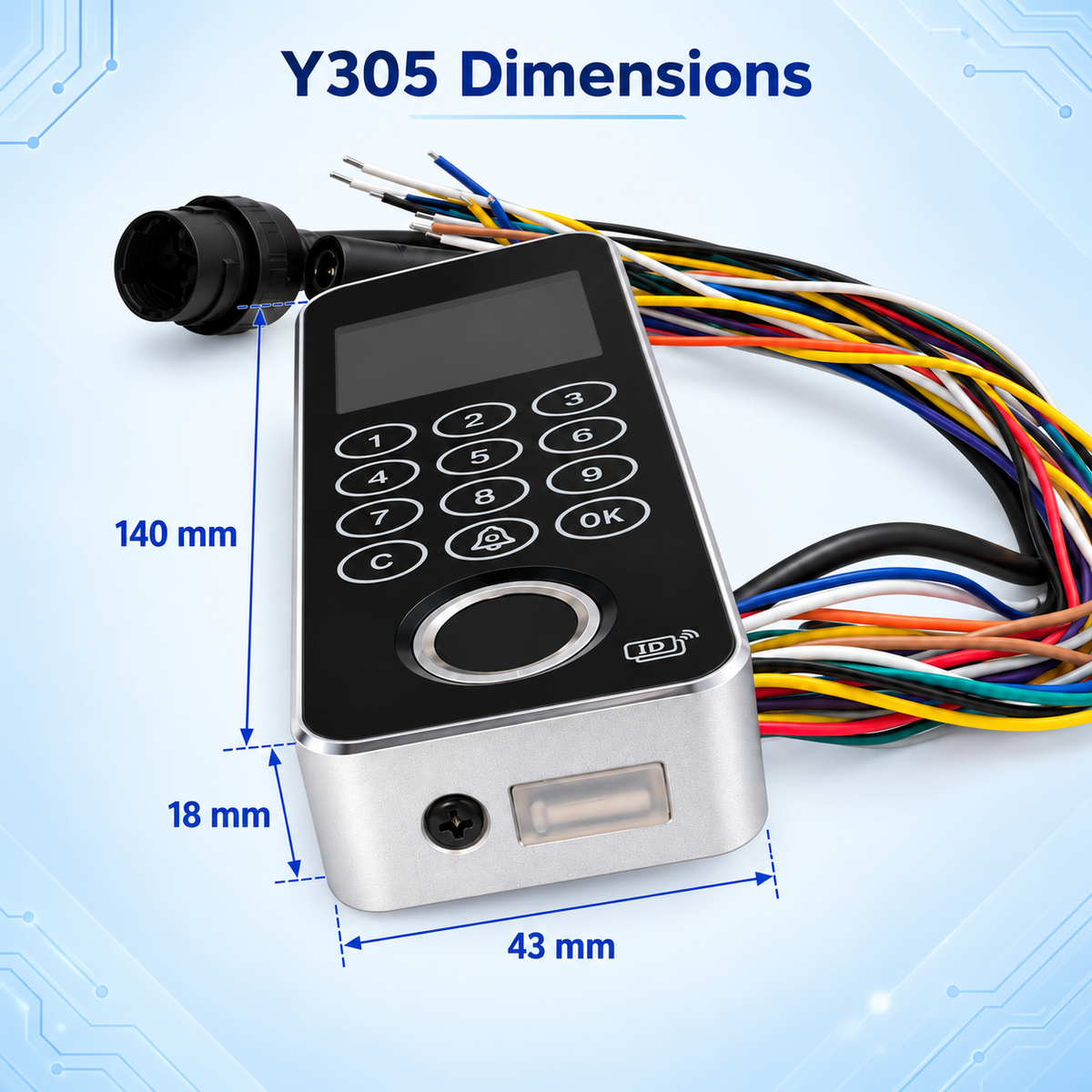

Slim Metal Housing for Narrow Door Frames
Measuring just 140 × 43 × 18 mm, Y305 offers a compact installation solution for offices, shops, commercial entrances and other locations with limited mounting space.

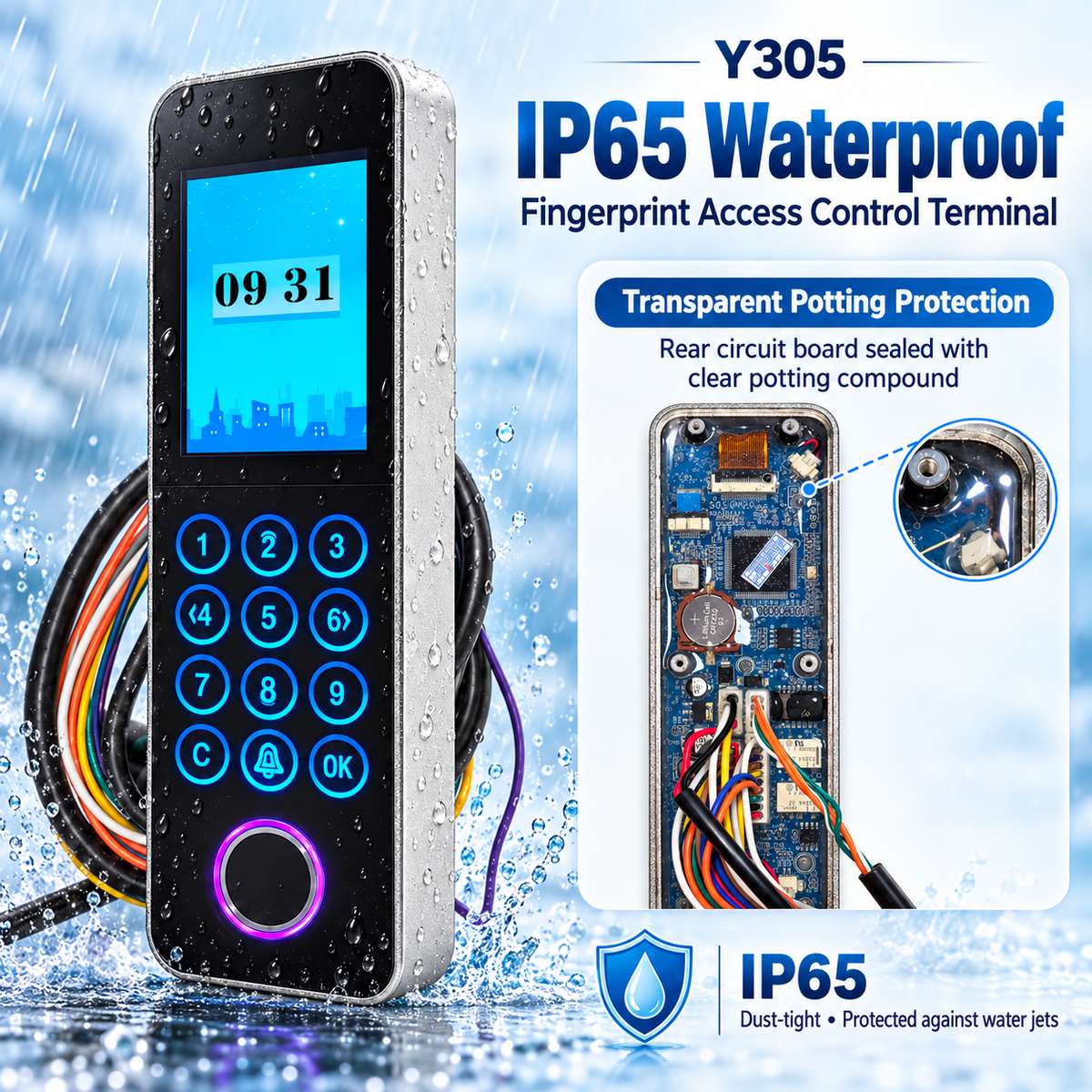

IP65 Protection with Transparent Rear Potting
The IP65-rated housing provides protection against dust and water jets. Clear protective potting over the rear electronics adds protection against water ingress. Outdoor cable connections must be properly sealed during installation.

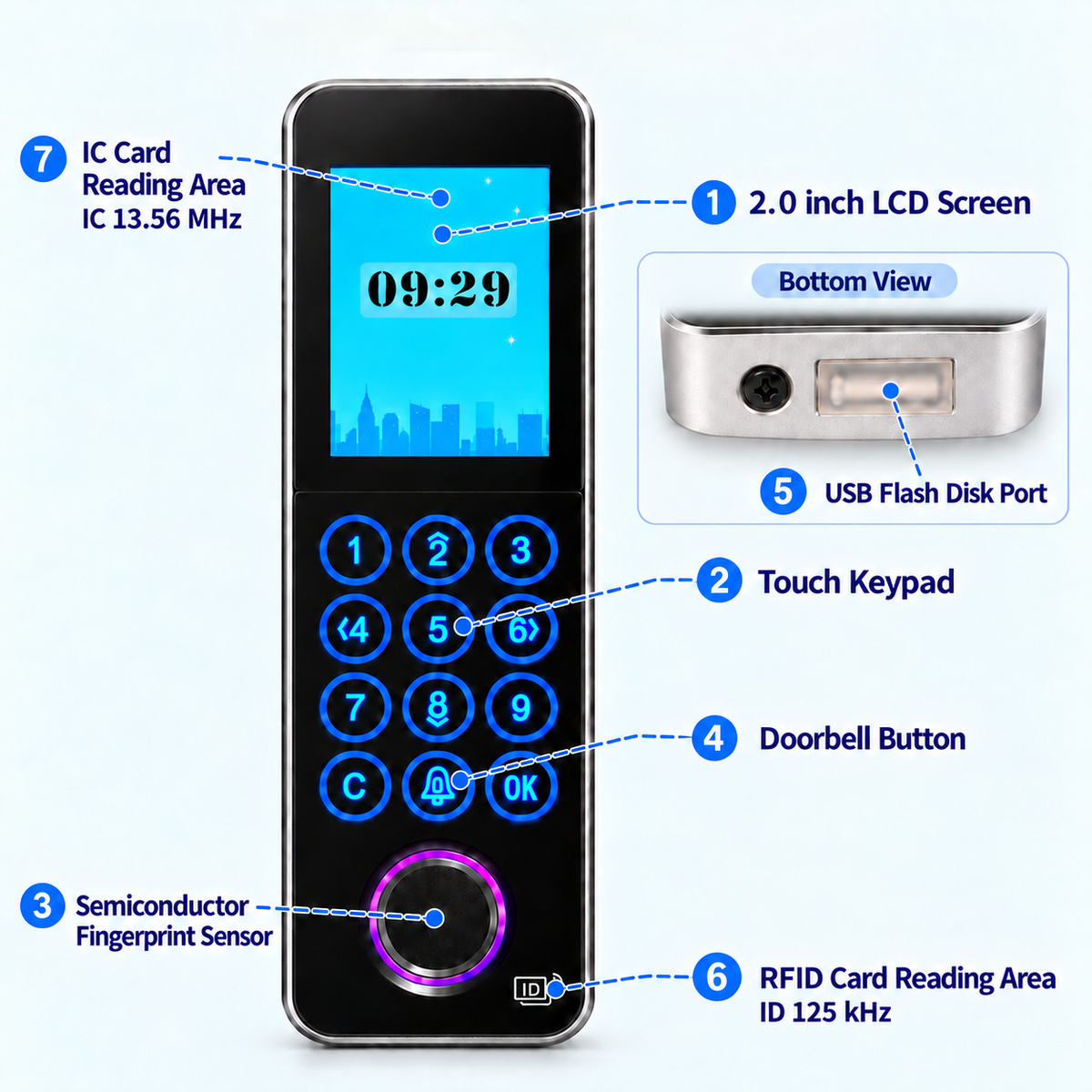

2.0-inch Color Screen & Touch Keypad
A 2.0-inch TFT color screen and illuminated touch keypad make everyday operation convenient. T9 input and support for 9-digit user IDs provide flexible user registration and management.
TCP/IP, USB & Cloud Communication
Supports local and cloud management through TCP/IP, USB and cloud communication. Local desktop software, web software and a phone app are available, along with local and cloud SDKs for integration projects.

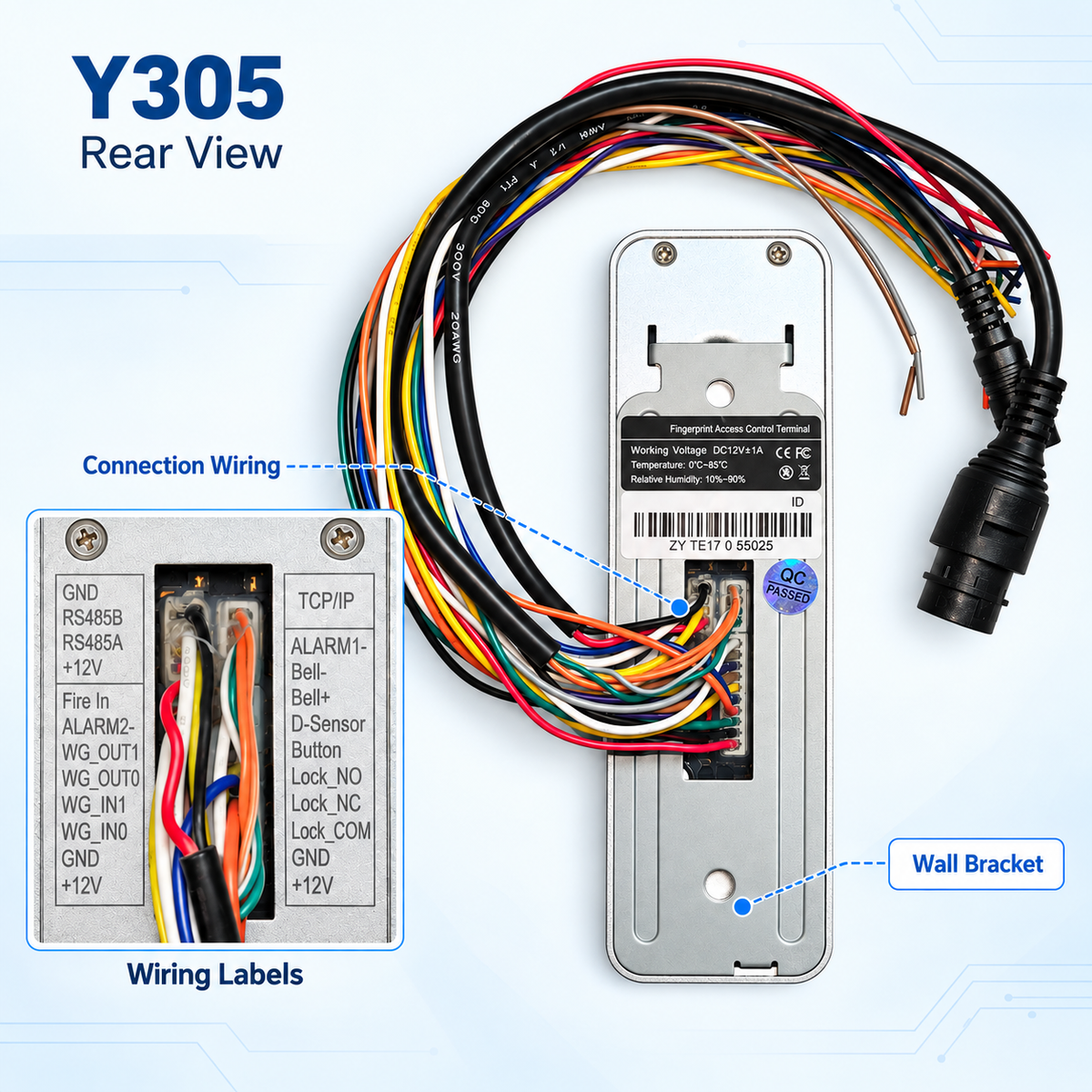

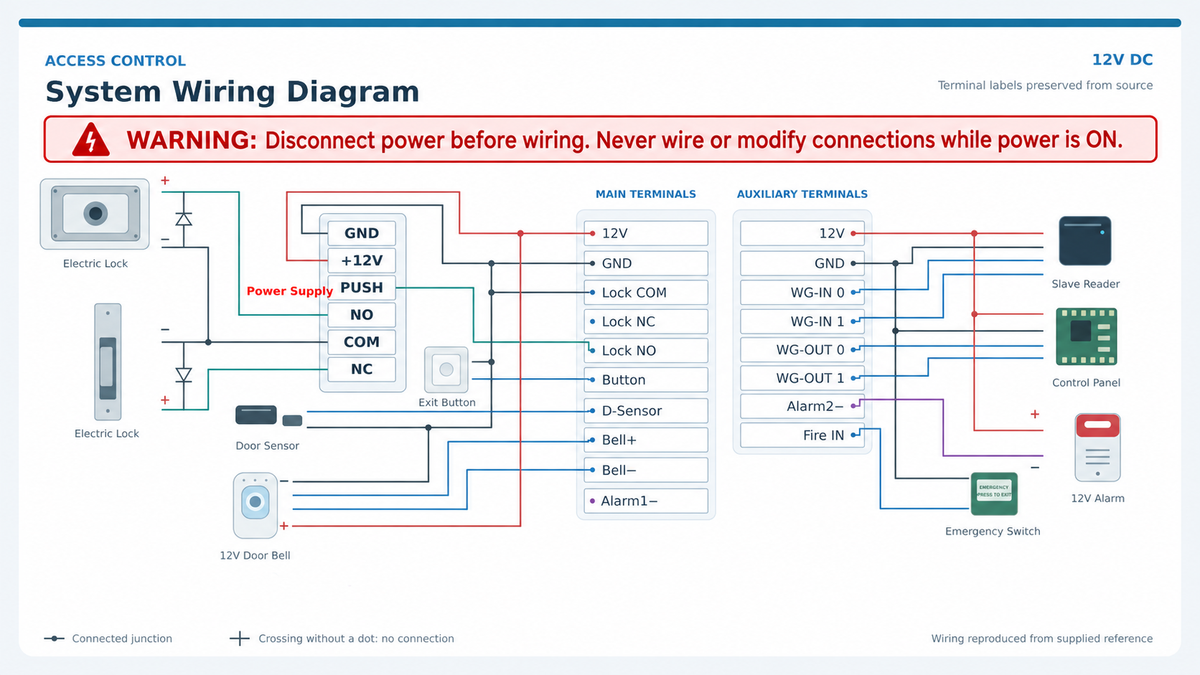

Flexible Access Control Connections
Connect compatible third-party electric locks, door sensors, exit buttons, alarms and doorbells. Wiegand 26/34 input and output support system integration, while RS485 slave mode works with our compatible equipment.
Advanced Access Management
Supports 8 daily time zones, 8 weekly time zones, 5 lock combinations and multi-person verification. Additional functions include anti-passback, interlock, fire alarm, daylight saving time and scheduled bell.
13 Selectable Menu Languages
English, Spanish, French, Russian, Portuguese, Italian, Turkish, Arabic, Farsi, Thai, Indonesian, Vietnamese and German.
Buzzer Only — No Voice Prompts
Y305 provides audible beep feedback only. The selectable languages apply to the on-screen menus; the device does not provide spoken voice prompts.
| Specification | Y305 |
|---|---|
| Verification Methods | Fingerprint, RFID Card, PIN |
| Fingerprint Capacity | 3,000 |
| Card Capacity | 3,000 |
| PIN Capacity | 3,000 |
| Record Capacity | 100,000 |
| Card Frequencies | ID 125 kHz & IC 13.56 MHz |
| Display | 2.0-inch TFT Color Screen |
| Input | Touch Keypad, T9 Input |
| Communication | TCP/IP, USB, Cloud |
| Wiegand | WG26/34 Input & Output |
| RS485 | Slave Mode; Works with Our Compatible Equipment |
| Access Control Interfaces | Electric Lock, Door Sensor, Exit Button, Alarm, Doorbell |
| Time Zones | 8 Daily Time Zones, 8 Weekly Time Zones |
| Lock Combinations | 5 |
| Multi-Person Verification | Supported |
| Alarm Outputs | 2 Signal Outputs |
| Alarm Events | Anti-Tamper, Duress, Door Open, Forced Entry |
| Additional Functions | DST, Scheduled Bell, 9-Digit User ID, Anti-Passback, Interlock, Fire Alarm |
| Menu Languages | English, Spanish, French, Russian, Portuguese, Italian, Turkish, Arabic, Farsi, Thai, Indonesian, Vietnamese, German |
| Audible Feedback | Buzzer Only; No Voice Prompts |
| Protection Rating | IP65 |
| Housing | Metal |
| Power Supply | DC 12V |
| Dimensions | 140 × 43 × 18 mm |
| Software | Local Desktop Software, Web Software, Phone App |
| SDK | Local & Cloud SDKs |
FAQ:
Which cards does Y305 support?
Y305 supports 125 kHz ID cards and 13.56 MHz IC cards.
Can I install Y305 on a narrow door frame?
Yes. Its housing is only 43 mm wide and measures 140 × 43 × 18 mm. Check that the frame provides sufficient mounting space and room for concealed wiring.
Is Y305 suitable for outdoor installation?
Y305 has an IP65 protection rating and transparent protective potting over the rear electronics. Seal all external cable connections properly during installation. The device is not designed for immersion.
Does Y305 provide voice prompts?
No. It provides buzzer feedback only. The 13 selectable languages apply to the screen menus.
Can it connect to an electric lock and doorbell?
Yes. Y305 supports compatible electric locks, doorbells, door sensors, exit buttons and alarms. Confirm the electrical requirements before connection.
Can Y305 integrate with another access control system?
It supports Wiegand 26/34 input and output. Local and cloud SDKs are also available. RS485 slave mode is intended for our compatible equipment; please confirm compatibility before purchase.
What management software is available?
Local desktop software, web software and a phone app are available. Contact us to confirm the software and integration solution suitable for your project.
What power supply does it require?
Y305 requires an external DC 12V power supply.
