Electric Bolt Lock with Positioning Ball & Adjustable Delay EB235D

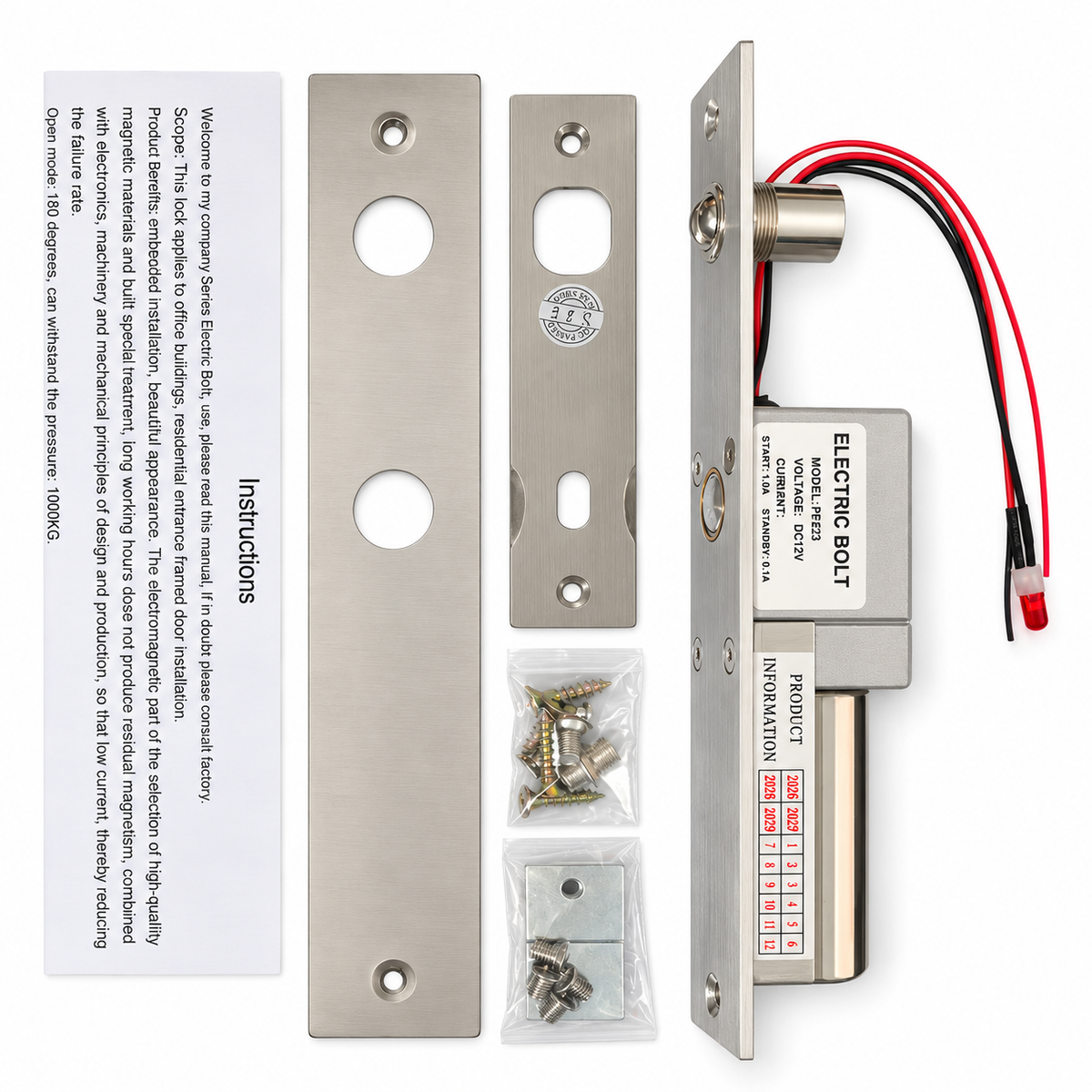

EB235D Electric Bolt Lock for Door Access Control

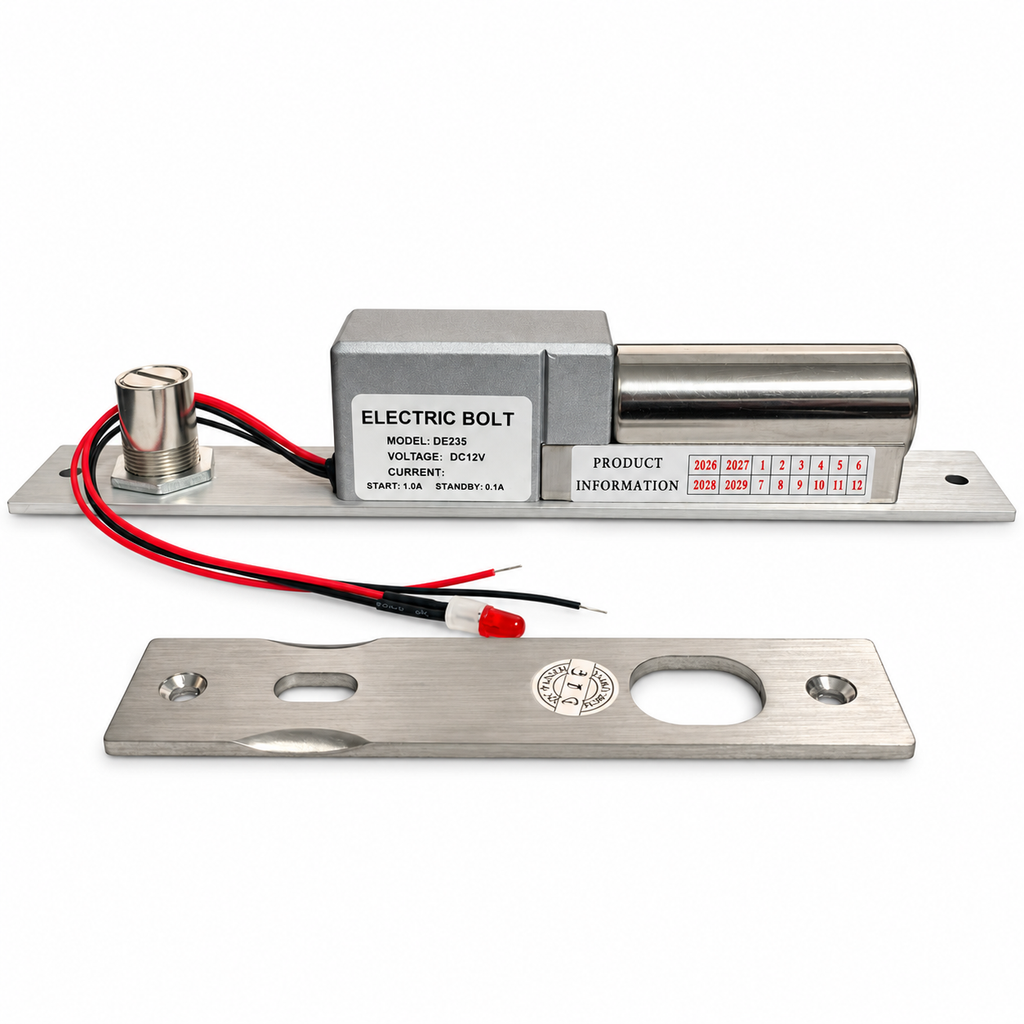

The EB235D electric bolt lock features magnetic sensor activated locking, a positioning ball and an adjustable locking delay. It supports door status signal output and includes an LED lock status indicator.

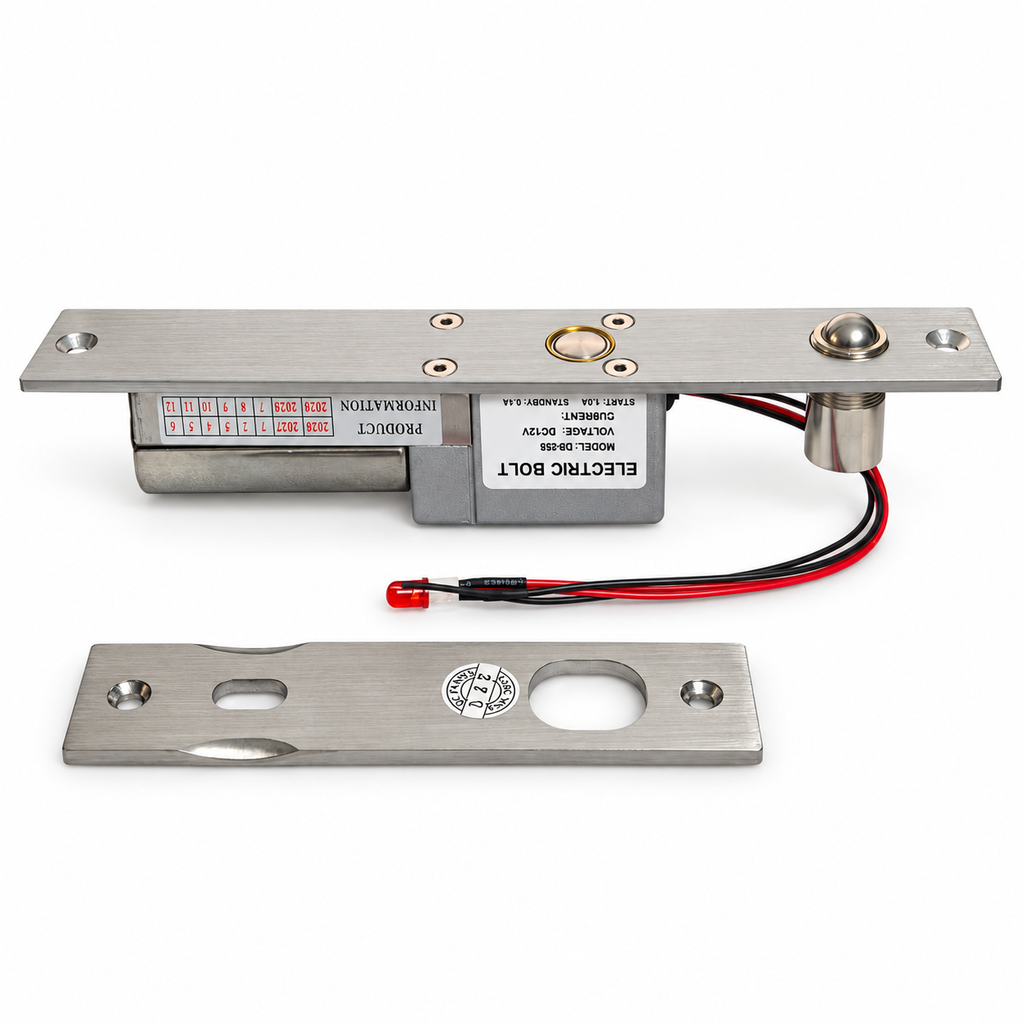

Positioning Ball for Improved Alignment
The positioning ball helps align the door before the locking bolt extends. This reduces repeated impacts between the door and the bolt, helping extend the lock’s service life.
Adjustable Locking Delay

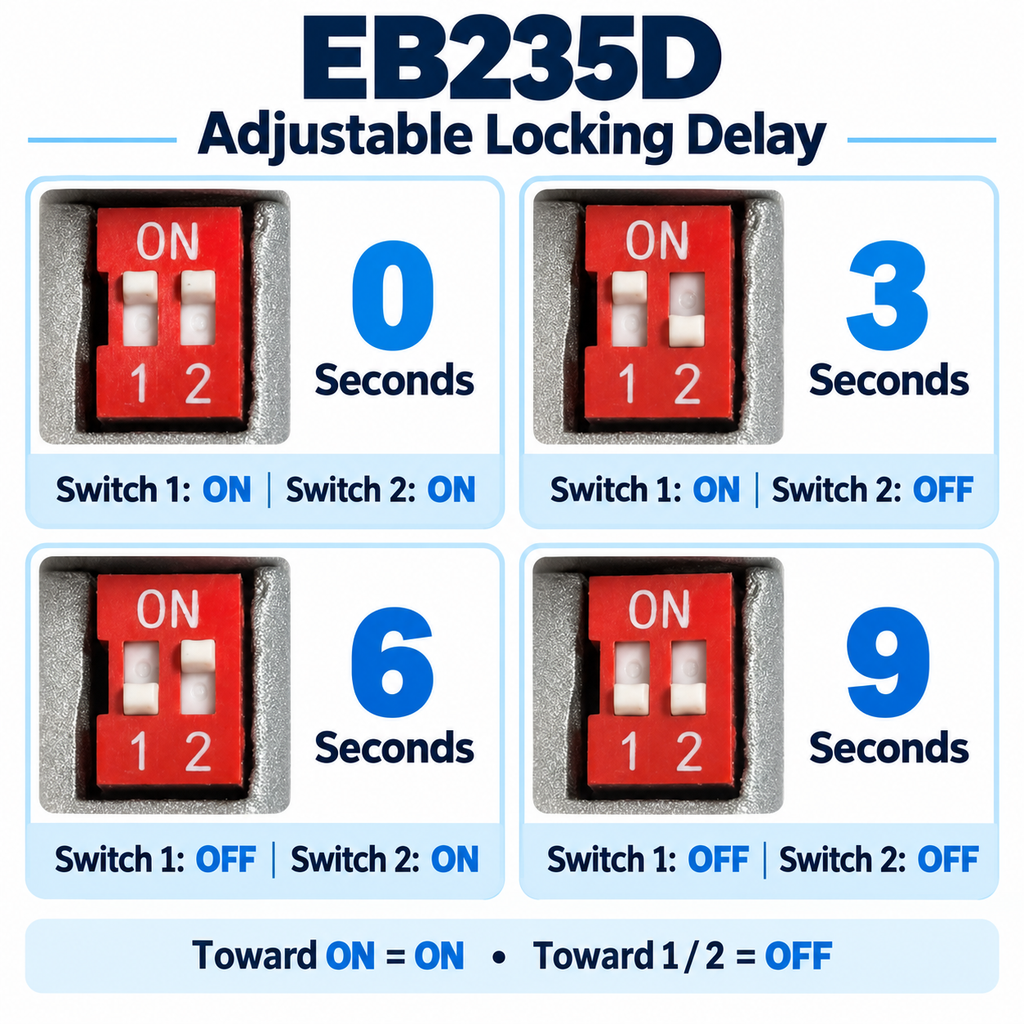

Choose a locking delay of 0, 3, 6 or 9 seconds using the two DIP switches.
| Locking Delay | Switch 1 | Switch 2 |
|---|---|---|
| 0 seconds | ON | ON |
| 3 seconds | ON | OFF |
| 6 seconds | OFF | ON |
| 9 seconds | OFF | OFF |
Move the switch toward ON to turn it on, or toward the numbered side to turn it off.
Fail-Safe Operation
The lock releases when power is disconnected. Magnetic sensing activates locking when the door is in position.

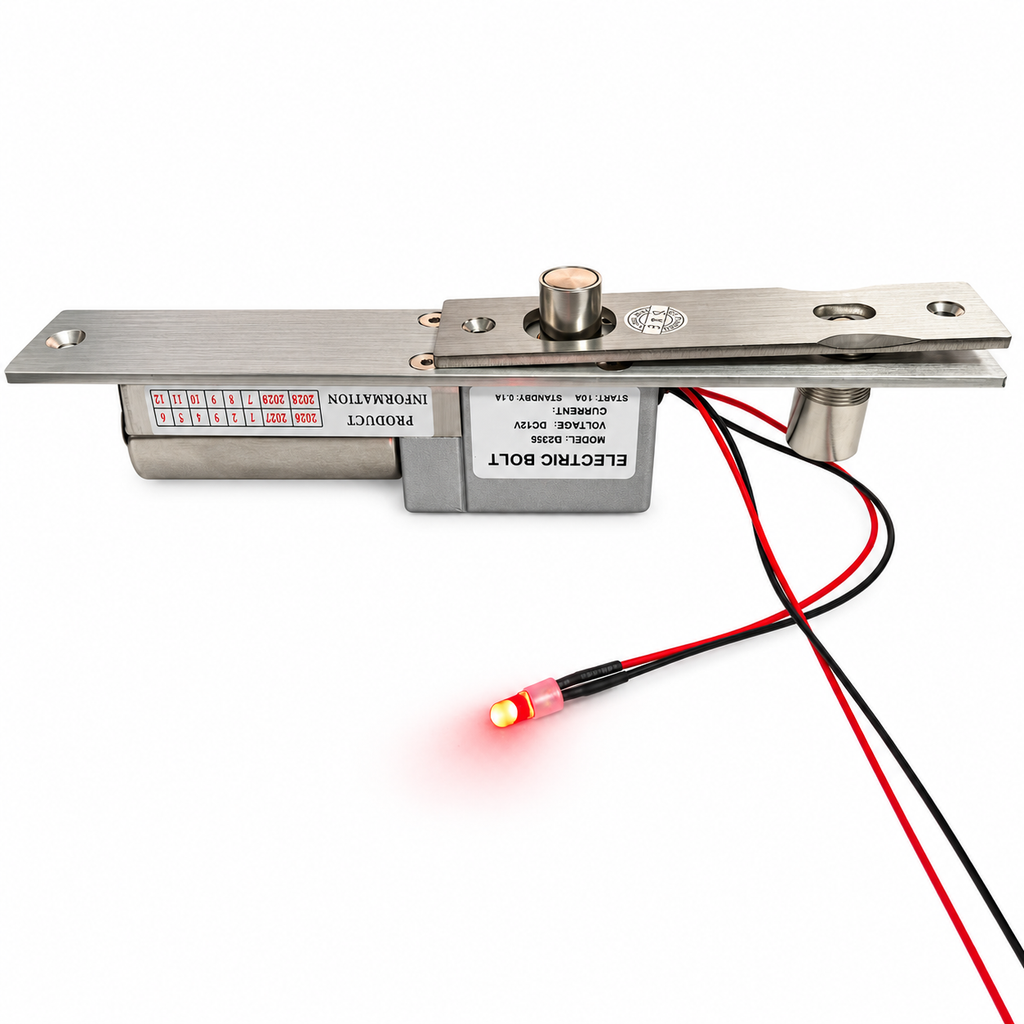

Door Status Output & LED Indicator
Supports door status signal output for connection to compatible access control systems. The LED indicator displays the locking status.
Recessed Installation
Designed for recessed installation in compatible door and frame assemblies, including suitable framed glass doors. Check the installation space and mounting dimensions before purchase.
Specifications
| Specification | Details |
|---|---|
| Model | EB235D |
| Product Type | Electric Bolt Lock |
| Operating Voltage | DC 12V ±15% |
| Locking Activation | Magnetic Sensor |
| Power-Off Status | Unlocked — Fail-Safe |
| Locking Delay | 0 / 3 / 6 / 9 Seconds |
| Door Alignment | Positioning Ball |
| Signal Output | Door Status |
| Status Indicator | LED |
| Door Opening Compatibility | 90° / 180° |
| Holding Force | Up to 1,000kg |

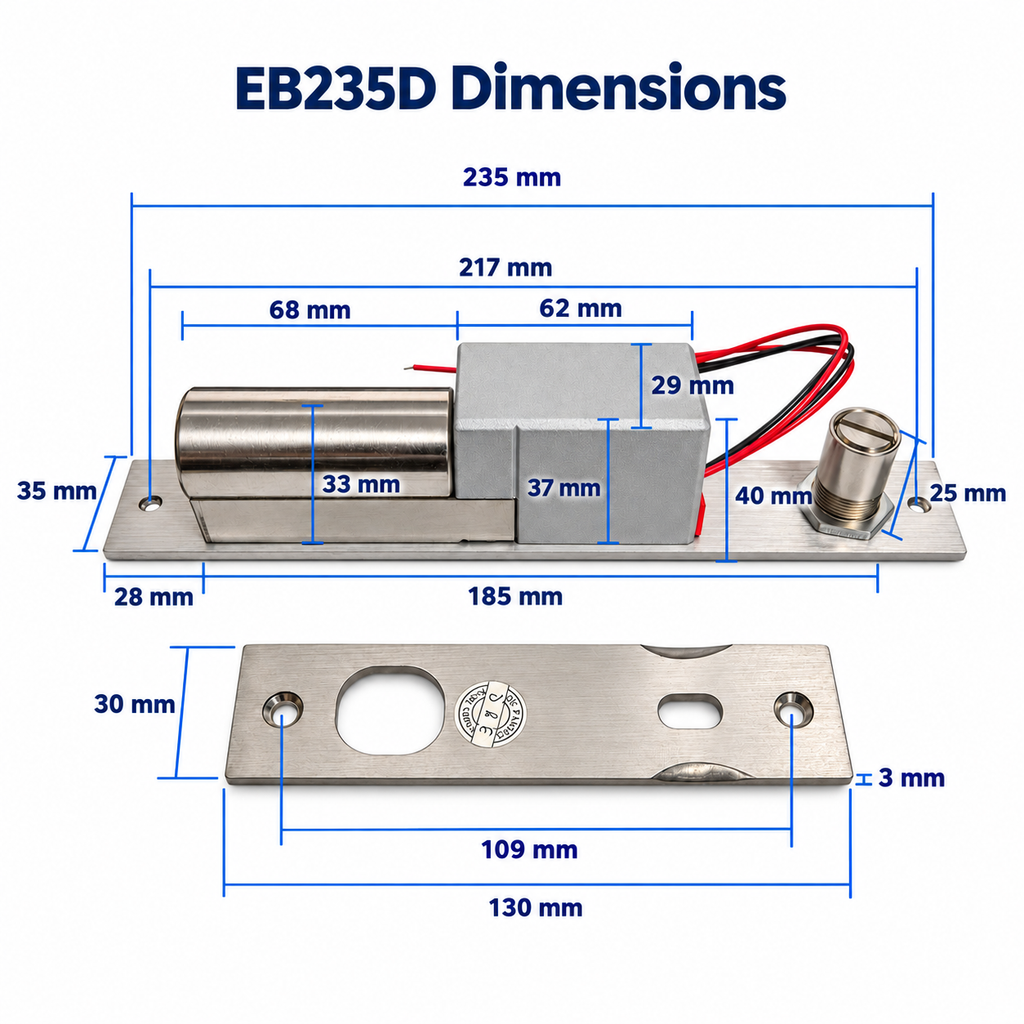

| Lock Dimensions | 235 × 35 × 40mm |
| Strike Plate Dimensions | 130 × 30 × 3mm |
| Installation | Recessed Mounting |
FAQ
Q: Does the lock unlock when power is disconnected?
A: Yes. The EB235D uses fail-safe operation and unlocks when power is disconnected.
Q: How do I adjust the locking delay?
A: Use the two DIP switches to select 0, 3, 6 or 9 seconds. Refer to the settings table above.
Q: What does the positioning ball do?
A: It helps align the door before the bolt extends, reducing impacts between the door and the bolt.
Q: Does it support door status monitoring?
A: Yes. It provides a door status signal output for compatible access control systems.
Q: Can it be installed on glass doors?
A: It can be used with suitable framed glass door assemblies that provide sufficient installation space. Confirm mounting compatibility before purchase.
